Horsch Leeb LED Upgrade, code; ledhorsch

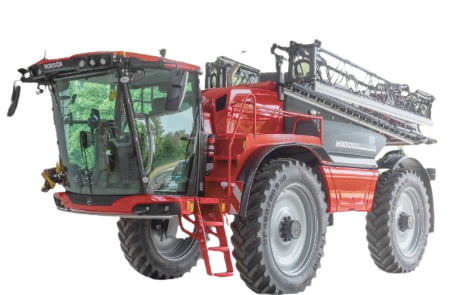

Horsch LEEB LED Light Upgrade Kit

Upgrade your Horsch Leeb with our 15 LED light package delivering a total of 1048 watts and 89,500 lumens.

Kit Includes:

On Roof for maximum forward vision
1 x 50-inch Curved LED Lightbar, LEDLB96X3CUR, 288 Watt, 31.7 Amp Draw, 21,600 Lumen
You will need to fabricate a mounting bracket for this lightbar, coming of the mirror mounts would be quiet easy.

A dedicated power harness will need to be installed. We recommend this be completed by a qualified auto electrician, as a 40-amp relay and correctly rated wiring harness are required.

Lights above windscreen

Replace Four 18 watt factory round LED lights
LED4x10-4033, 40 watt CREE LED Flood Lights, 3.3 amp draw, 3,200 lumens.

power loom supplied for easy plug and play

Lights mounted low each side of cab, on mirror arms, each side of tank
Replace 8 factory fit halogen lights
LED6X10-6031, 60 Watt, 5.2 Amp, 5800 Lumen
These will plug straight in on existing power loom

Blue LED to illuminate spray pattern
LED12X5BLU, 60 Watt, 5.1 Watt, 4350 Lumen
Designed to illuminate the spray pattern on each side of the machine.

These will plug straight in on existing power loom

Need a tailored setup? Call us on (08) 9335 2700—we’ll help you find the right solution for your machine.
