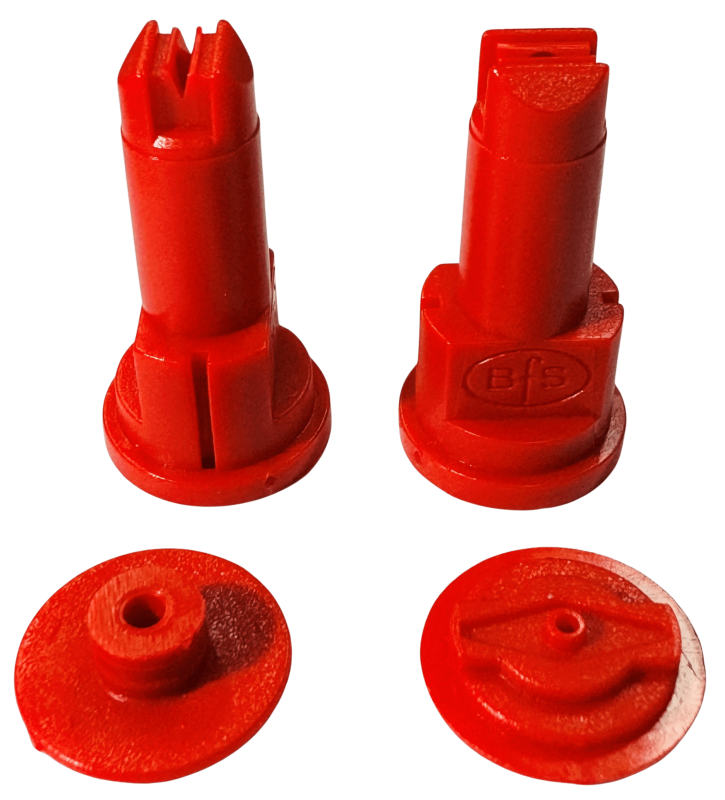

.040 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.
Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a medium droplet
Fits in a Standard 8mm Nozzle Cap.
Please refer to the nozzle calculator on http://www.bfs.uk.com/ for full nozzle output and droplet data.
please email if you require output data at 30 or 40 cm nozzle spacing
Nozzle | Flow | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | SPEED KMH |
Pressure | L/min | Output in Litres per hectare at 50cm spacings | ||||||||
2 bar | 1.31 | 98 | 87 | 79 | 71 | 65 | 60 | 56 | 52 | |
2.5 bar | 1.46 | 110 | 98 | 88 | 80 | 73 | 68 | 63 | 59 | |
3 bar | 1.6 | 120 | 107 | 96 | 88 | 80 | 74 | 69 | 64 | |
3.5 bar | 1.73 | 130 | 116 | 104 | 95 | 87 | 80 | 74 | 69 | |
4 bar | 1.85 | 139 | 124 | 111 | 101 | 93 | 86 | 79 | 74 | |
4.5 bar | 1.96 | 147 | 131 | 118 | 107 | 98 | 91 | 84 | 79 | |
5 bar | 2.07 | 155 | 138 | 124 | 113 | 103 | 95 | 89 | 83 | |
5.5 bar | 2.17 | 162 | 144 | 130 | 118 | 108 | 100 | 93 | 87 | |
6 bar | 2.26 | 170 | 151 | 136 | 123 | 113 | 104 | 97 | 91 | |
6.5 bar | 2.36 | 177 | 157 | 141 | 128 | 118 | 109 | 101 | 94 | |
7 bar | 2.44 | 183 | 163 | 147 | 133 | 122 | 113 | 105 | 98 |
