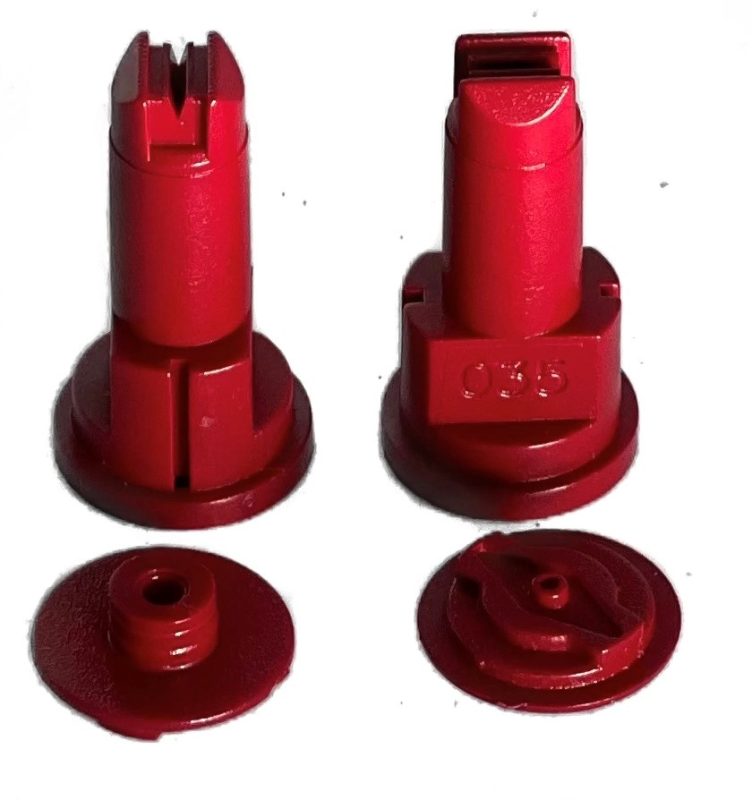

.035 Billericay Farm Services Air Bubble Jet is the best choice for all year round spraying. Producing a condensed droplet spectrum to reduce drift and enhance chemical uptake.
Reduce pressure to produce coarse to very coarse droplets, increase pressure to produce a medium droplet
Fits in a Standard 8mm Nozzle Cap.
Please refer to the nozzle calculator on http://www.bfs.uk.com/ for full nozzle output and droplet data.
please email if you require output data at 30 or 40 cm nozzle spacing
Nozzle | Flow | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | SPEED KMH |
Pressure | L/min | Output in Litres per hectare at 50cm spacing | ||||||||
2 bar | 1.14 | 86 | 76 | 69 | 62 | 57 | 53 | 49 | 46 | |
2.5 bar | 1.29 | 96 | 85 | 7 | 70 | 64 | 59 | 55 | 51 | |
3 bar | 1.4 | 105 | 93 | 84 | 76 | 70 | 65 | 60 | 56 | |
3.5 bar | 1.51 | 114 | 101 | 91 | 83 | 76 | 70 | 65 | 61 | |
4 bar | 0.62 | 121 | 108 | 97 | 88 | 81 | 75 | 69 | 65 | |
4.5 bar | 1.71 | 129 | 14 | 103 | 94 | 88 | 79 | 74 | 69 | |
5 bar | 1.81 | 136 | 120 | 108 | 99 | 90 | 83 | 77 | 72 | |
5.5 bar | 1.90 | 142 | 126 | 114 | 103 | 95 | 87 | 81 | 76 | |
6 bar | 1.98 | 148 | 132 | 119 | 108 | 99 | 91 | 85 | 79 | |
6.5 bar | 2.06 | 155 | 137 | 124 | 112 | 103 | 95 | 88 | 82 | |
7 bar | 2.14 | 160 | 143 | 128 | 117 | 107 | 99 | 92 | 86 |
