JD7810 and similar LED Light Upgrade Package, Code ledjd78

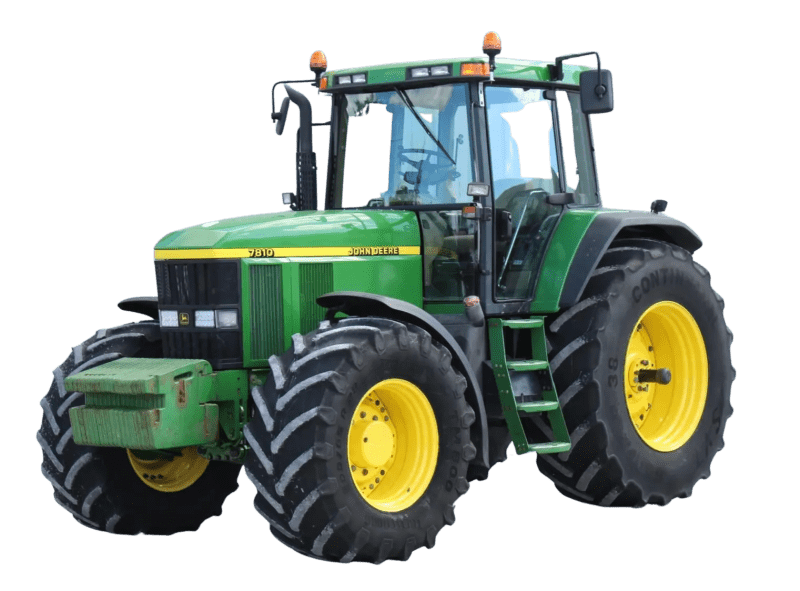

John Deere 7810 Series LED Light Upgrade Kit

Upgrade your John Deere with this premium LED light upgrade, featuring 12 high-output LED Re-Placement lights delivering a total of 440 watts and 34,900 lumens.

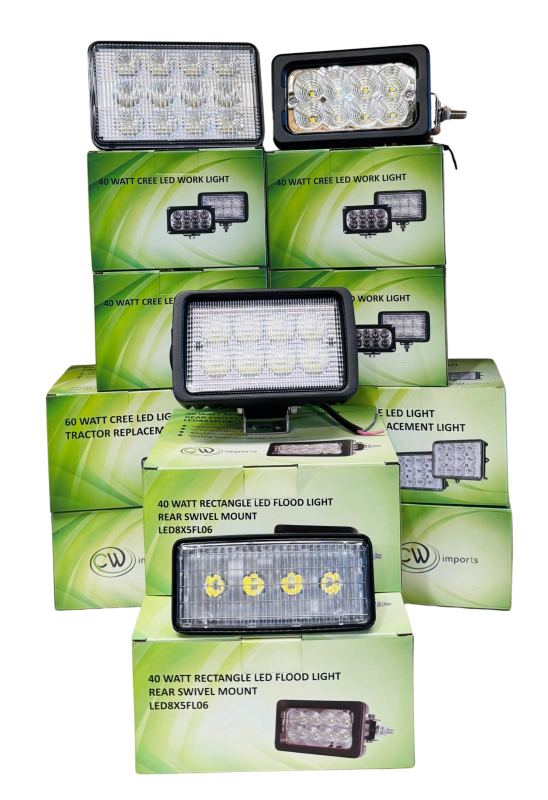

Kit Includes:

Front Grill
Replace 2 factory fit halogen lights

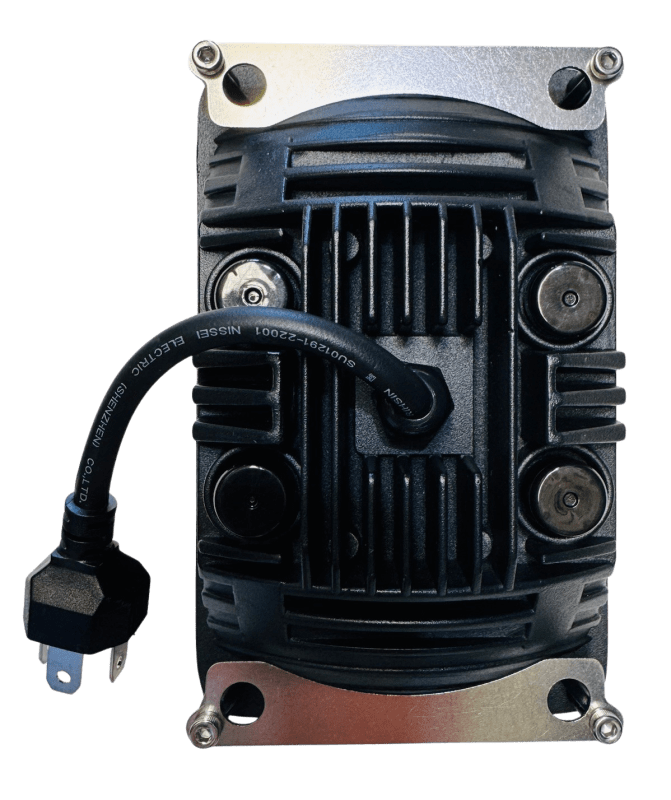

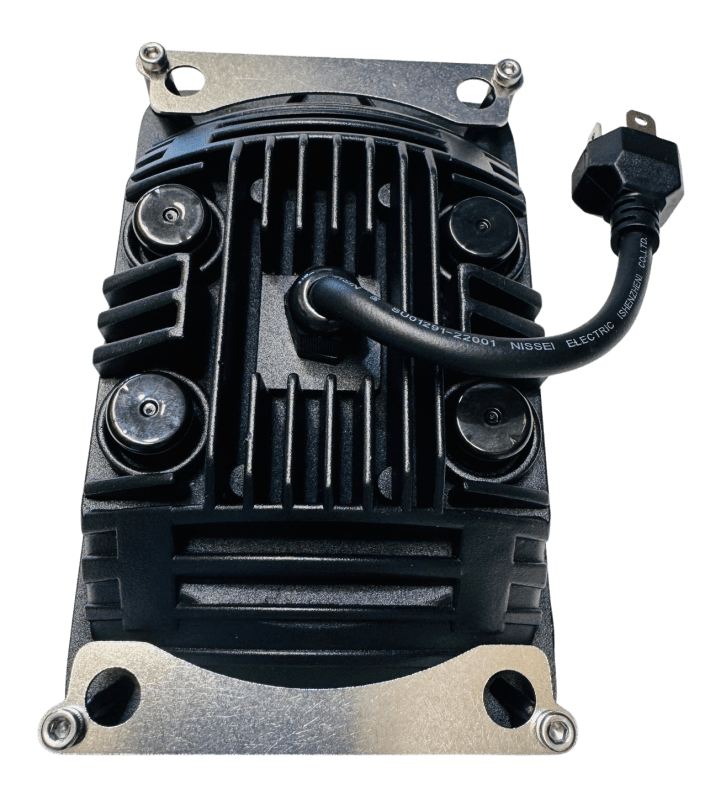

led12x5-0606, 60 Watt LED Hi/Lo lights, 5.1amp draw, 4350 Lumen per light, new design bracket from Nov 2025

Cab Top LED Inserts

Replace 4 factory fit halogen lights
4 pieces of LED4X5-0203, 20W each, 1.5A draw 1,600 lumens per light

Windscreen Side Lights

Replace 2 factory fit halogen lights
2 pieces of LED8X5-0406, 40W each,  3A draw, 3,200 lumens per light

Rear Cab/Mudguard Lights

Replace 4 factory fit halogen lights
4 pieces of LED8X5-0409B, 40W each, 3A draw, 3,200 lumens per light

Need a tailored setup? Call us on (08) 9335 2700—we’ll help you find the right solution for your machine.

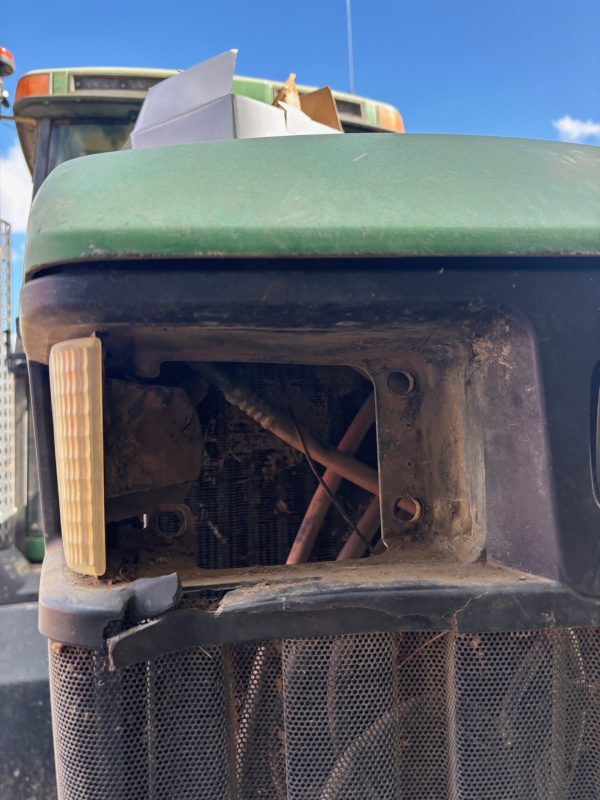

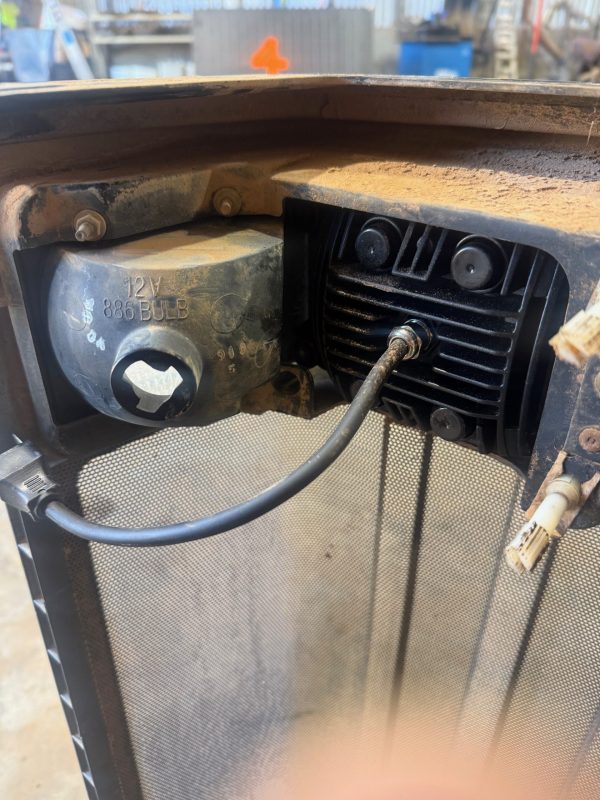

As we supply more kits, it is coming to our attention that there must be some subtle changes to the front bonnet, especially in the early models as the led12x5-0606 with the mounting bracket may not fit. we have shared a couple of photos as to what clients have done to make them fit. Please do not hesitate to ring Craig on 0893352700 to discuss.
