JD S Series Combine LED Upgrade, Code; ledsseries

Two of the lights in this Kit being the led12x5-0607 are currently out of stock, we expect more stock to arrive by the end of October. If you order now, all the kit bar these two lights will be shipped out and we will forward these remaining two lights at our cost when we receive. Apologies for this.

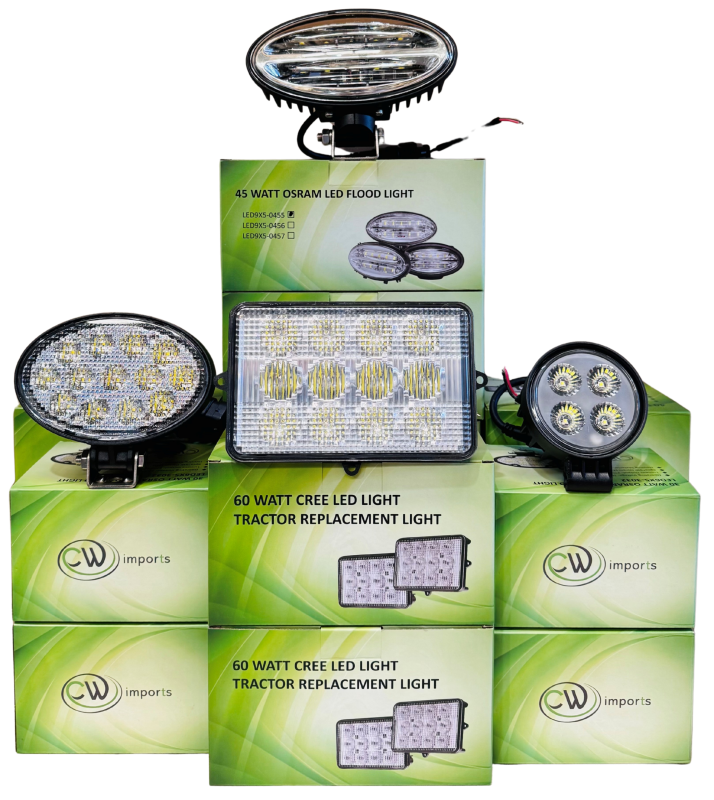

John Deere S Series combine LED upgrade Kit

This premium LED light upgrade kit includes 14 plug-and-play LED lights providing a combined 616 watts of power and 47,900 lumens of light output.

Kit Includes

Cab Lights

Replace eight factory halogen lights

4 pieces of led9x5-0455 inner upper cab, 45W, 3.8A draw, 3,600 lumens each, correct plugs for plug and play.

4 pieces of led4x10-4033 for outer upper cab, 40W, 3.2A draw, 3,200 lumens each

Feeder House and Reverse

Replace four factory halogen lights

4 pieces of led13x3-0392, 39 watt, 3.7 amp draw, 3120 lumen. 2 each side of feeder house and 2 on rear of machine

Grain Tank

Replace two factory halogen lights

2 pieces of led12x5-0607, 60watt, 5.1 watt draw, 4350 lumen, one for each side of grain tank

The led12x5-0607 are currently out of stock, we expect more stock to arrive by the end of October. If you order now, all the kit bar these two lights will be shipped out and we will forward these remaining two lights at our cost when we receive. Apologies for this.

Need a tailored setup? Call us on (08) 9335 2700—we’ll help you find the right solution for your machine.
