JD 9760/70/80 Combine LED Upgrade, cab and feeder house, Code; ledjd97

John Deere 9760/70/80 Combine LED upgrade Kit for cab and feeder house lights

This premium LED light upgrade kit includes 10 plug-and-play LED lights providing a combined 546 watts of power and 43,800 lumens of light output. Replacing the 6 cab lights with efficient LED Lights vastly improves lighting on these machines. These LED’s make factory fit HID look like dolphin torches.

Double check your machine as some very early 60 series have the rectangle cab lights and you will need to order code; ledjd95

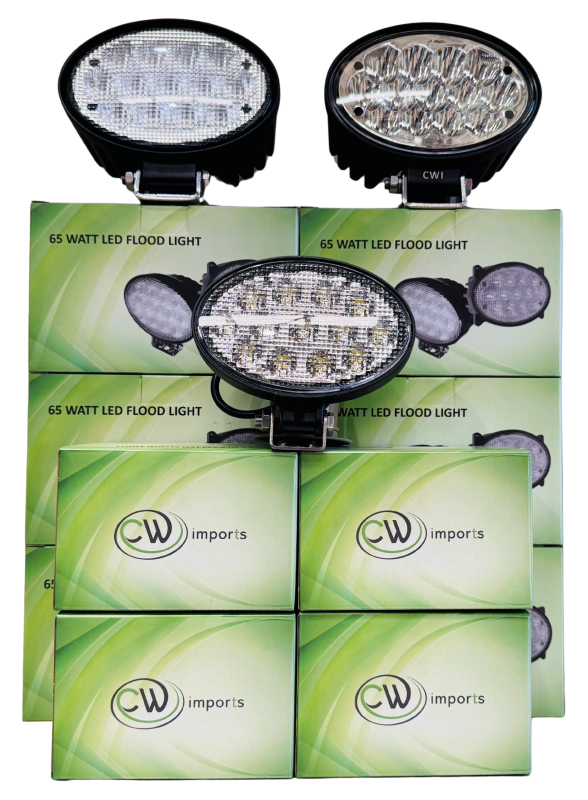

Kit Includes

Cab Lights

Replace six factory halogen lights

2 pieces of led13x5-0651SP inner upper cab, 65W, OSRAM LED, 5.4A draw, 5220 lumens each, correct plugs for plug and play. Spot Lights for better distance

4 pieces of led13x5-0651 Floods for outer upper cab, 65W, OSRAM LED, 5.4A draw, 5220 lumens each, correct plugs for plug and play.

Ensure when taking power for cab lights that you take the power out of the HID Ballast if these are fitted.

Feeder House and Reverse

Replace four factory halogen lights

4 pieces of led13x3-0392, 39 watt, 3.7 amp draw, 3120 lumen. 2 each side of feeder house and 2 on rear of machine

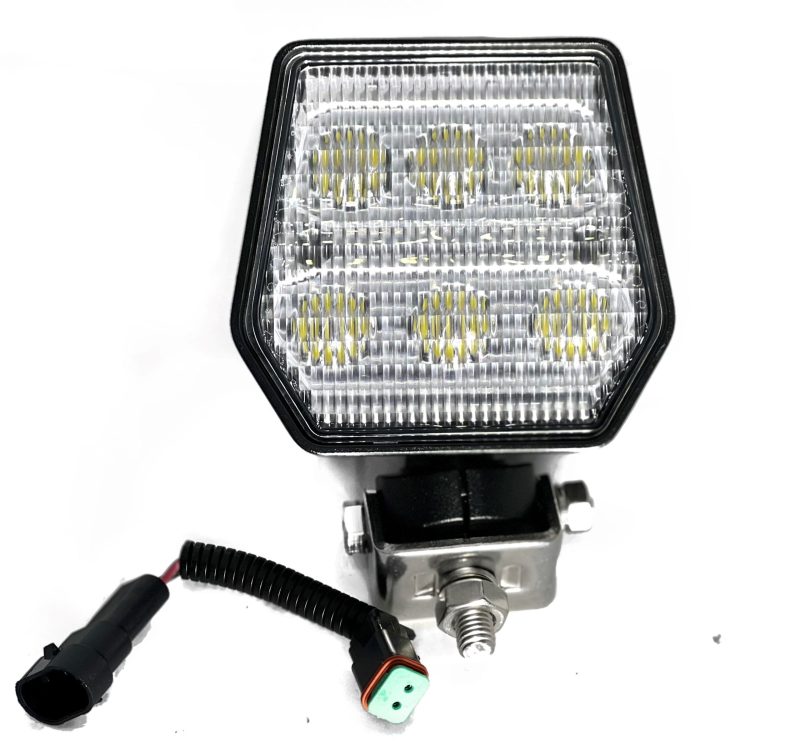

Currently out of stock of the led13x3-0392, we are replacing them with the led6x5-3032, which will be a more than adequate replacement

if you require machine lights for in engine bay and undersides the led6x5-0302 will be a suitable light fitted with the H11 plug and tail, priced at $66.00inc gst each

Need a tailored setup? Call us on (08) 9335 2700—we’ll help you find the right solution for your machine.
