7IN HD WIRELESS 2 CAM AIRSEEDER KIT, CODE; CWI7WL2CAMLEDHD

HD Wireless 2 Camera Kit – For Seed & Fertilizer Tank Monitoring

Take the guesswork out of loading and monitoring with our purpose-built High-Definition Wireless Camera Kit, designed specifically for air-seeder seed and fertilizer tanks. With inbuilt LEDs, the cameras illuminate the inside of tanks, making it easier to monitor product levels and assist during loading—even in low-light conditions.

What’s Included:

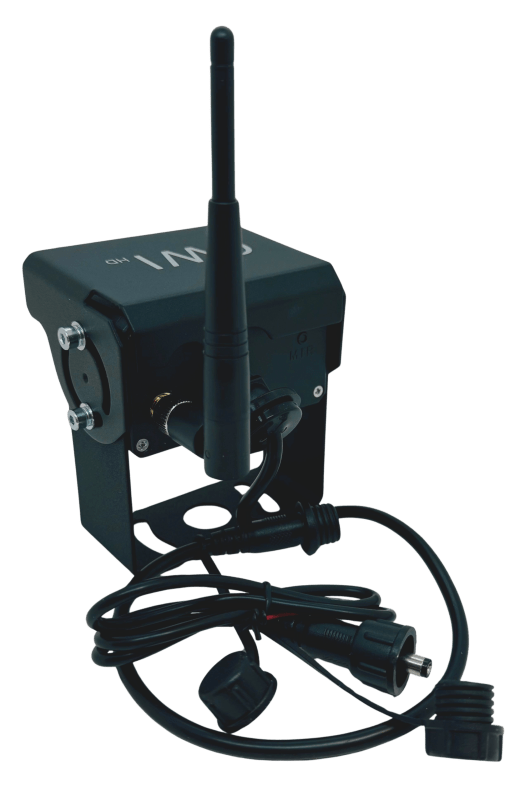

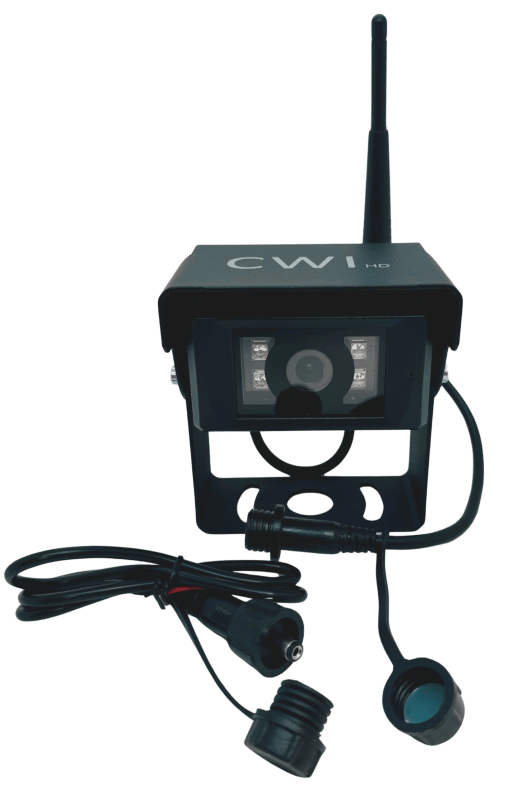

• 2 x CWIcamwl110HDLED Wireless HD Cameras

  • Cameras requires 12–24V power

  • Built-in LED lights for enhanced visibility inside tanks

  • IP69K waterproof rating for maximum durability

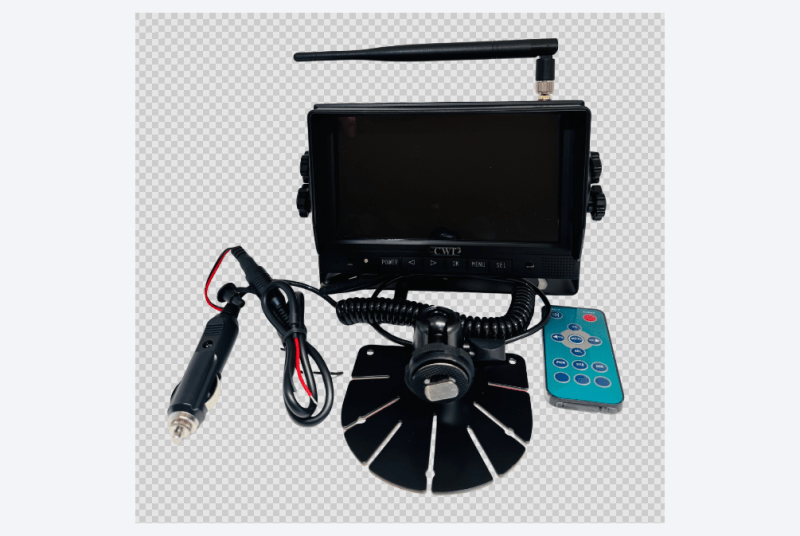

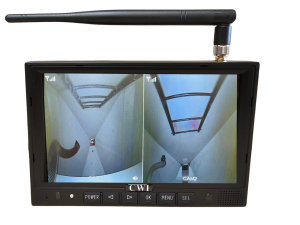

• 1 x 7” HD Wireless QUAD Screen

  • Supports up to 4 HD wireless cameras

  • View up to four camera feeds simultaneously

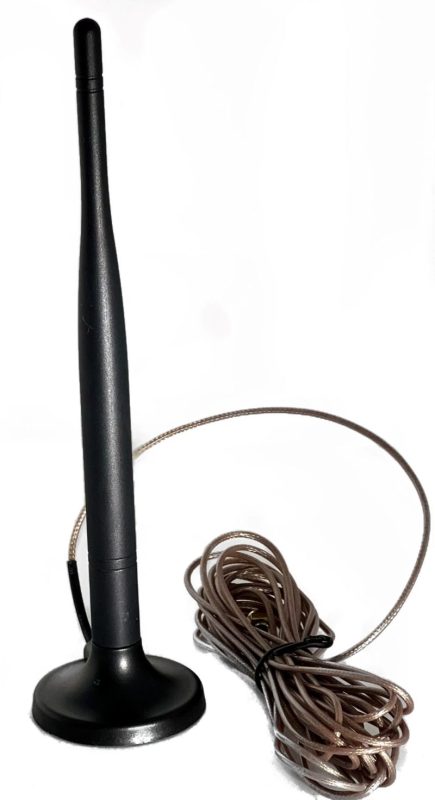

• 2 x CWIEA5 External Antennas

  • To transmit signal from cameras inside the air-cart

  • To be mounted externally for optimal line of sight to the tractor cab

• Mounting brackets, power harness, and remote control included

Why Choose the HD Kit?

✅ High-Definition Image Quality – Marked clearly with “HD” and distinguished by a single aerial at the right rear of the screen, these upgraded units provide clearer images and superior range.

✅ Designed for Air Carts – Suitable for both tow-between and tow-behind configurations, helping you monitor inside seed and fertilizer tanks with ease.

✅ Reduced Interference – Enhanced tolerance to electrical noise and 300m line-of-sight range for uninterrupted monitoring.

✅ Simple Installation –

• Red wire to keyed power

• Black wire to earth

✅ Rugged & Reliable –

• Power input: 10–32V, approx 8W draw

• Frequency: 2400–2483MHz

• Screen resolution: 1024×600, with vibrant, detailed display

⚠️ Please note: This HD screen is not compatible with standard-definition wireless cameras, and HD cameras will not connect to non-HD screens.
📸 Images are for illustration purposes only.
