10.1” HD Wireless QUAD Screen, Code; cwi10.1WLSCRN-HD

10.1” HD Wireless QUAD Screen only

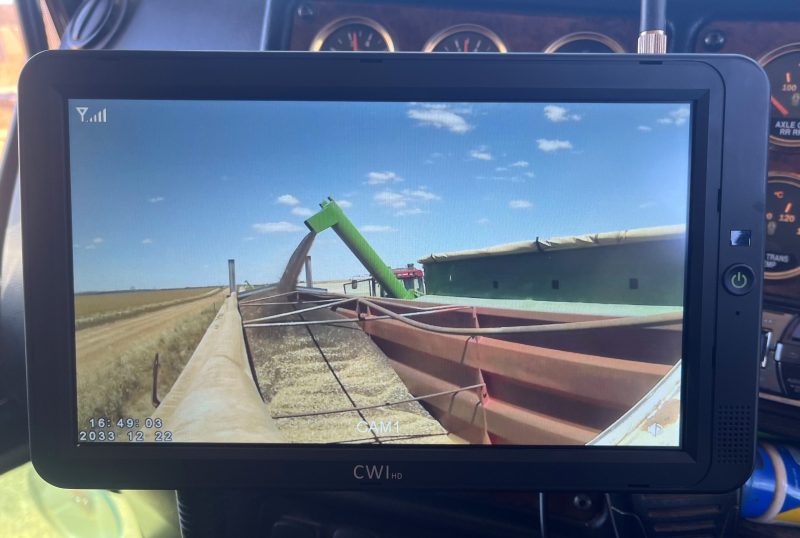

The 10.1” High-Definition Wireless QUAD screen delivers crystal-clear visuals and supports multiple display modes, including quad view, split-screen, and single-camera modes.

Key Features:

• Display Modes: Quad view, split view, or single-camera display

• HD Wireless Connectivity: Superior range, up to 300mts line of sight and reduced interference

• Built-in Recording: Supports up to 128GB micro-SD card, purchase separately.

  64G will give 72 hours recording in quad mode

  128G will give 144 hours recording in quad mode.

• Power Input: 10–32V, approx. 8W draw

• Operating Frequency: 2400–2483MHz

• Resolution: 1024 × 600

• Pixel Size: 0.1506mm (W) x 0.1432mm (H)

What’s Included:

• 10.1” High-Definition wireless QUAD screen

• Screen Size; 265mm W,  192mm H with aerial folded down,  65 mm Deep with sun-visor, 850 Grams

• Power harness with both cigarette plug and DN plug (can be hardwired – red to positive, black to negative)

• Mounting brackets and clip on sun shade

•  Remote control

Add up to Four HD wireless cameras: compatible cameras include,

• cwicam70WL-HD

• cwicam110WL-HD

• cwicam110WL-HDLED

• cwicamWLMBR-HD

• Note: This screen is only compatible with CWI High-Definition wireless cameras. All HD components are clearly marked “HD” to avoid confusion.

Installation Notes:

• Ideal for use on tow-behind air carts to monitor seed and fertilizer bins. For enclosed bins, we do recommend HD cameras with inbuilt LEDs, cwicamwl110HD-LED, kits for air-cart monitoring are available

• Each camera will require an external antenna for direct line of sight to the tractor cab.

• When used on road trains, avoid drawing power from taillights—some new European trucks supply only 6V. A dedicated power wire is recommended during trailer fabrication.

Lock Function:

Hold the power button for 2–3 seconds to lock or unlock the screen. A padlock icon will appear to indicate the mode.
