60 Watt Hi/Lo LED to suit JD 5, 6 and 7 series, code; led12x5-0606

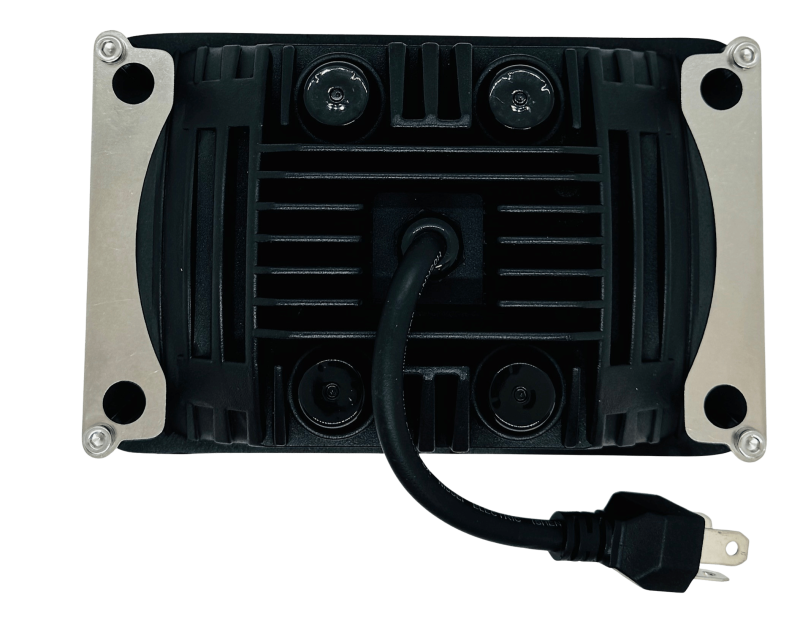

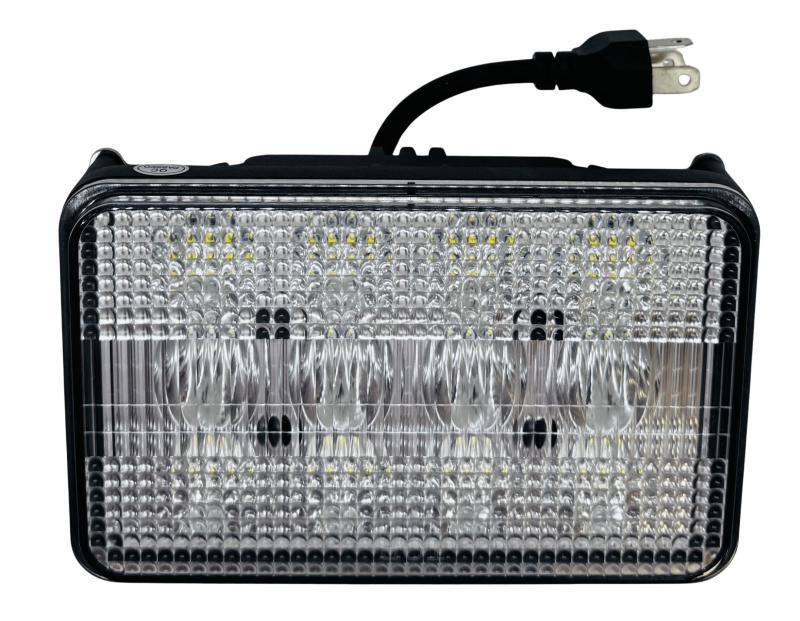

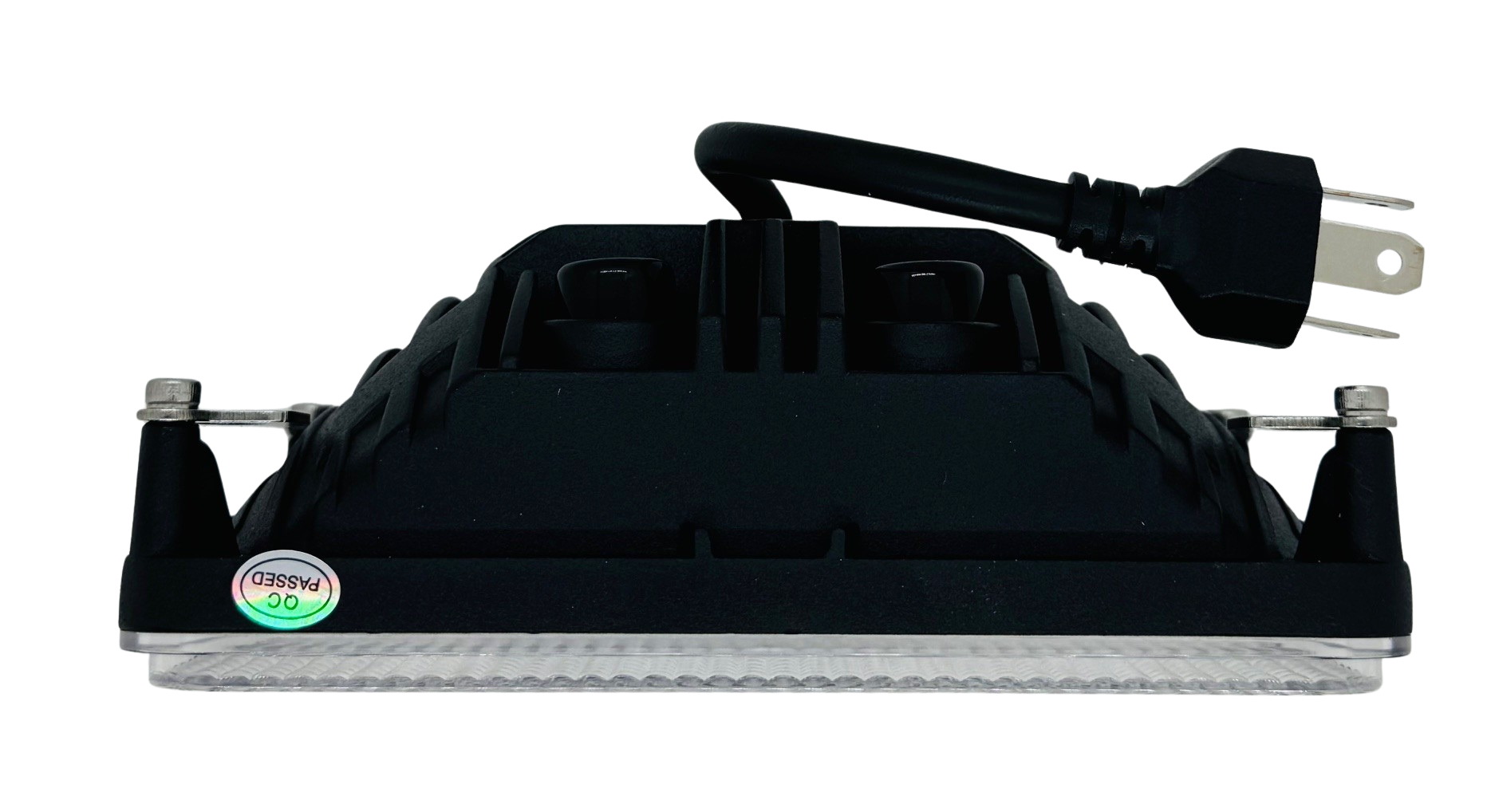

60W Osram LED Hi/Lo Headlight – Suits John Deere 5, 6 & 7 Series Tractors

Upgrade your John Deere tractor lighting with this 60W Osram LED Hi/Lo beam headlight, built to directly replace factory-fitted lights on a wide range of 6 and 7 Series models. With a powerful 4,500-lumen output, these lights significantly enhance night-time visibility, safety, and operator comfort.

Easy to install with a standard H4 plug and pre-attached steel mounting frame for a secure, hassle-free fit.

Key Features:

Light Output: 4,500 lumens

Power Draw: 4.9A @ 12V

Plug Type: H4

Beam Pattern: Hi/Lo beam functionality

Housing: Die-cast aluminium with polycarbonate lens

Mounting: Steel frame pre-installed for easy alignment

Weather Protection: Designed for harsh agricultural conditions

Dimensions & Weight:

Width: 165mm

Height: 104mm

Depth: 55mm

Weight: 573g

Compatible John Deere Models:

5 Series: 5045D, 5045E, 5055D, 5055E, 5065E, 5065M, 5075E, 5075M, 5076E, 5076EF, 5076EL, 5082E, 5083E, 5083EN, 5085M, 5090E, 5090EH, 5090EL, 5093E, 5093EN, 5095M, 5095MH, 5101E, 5101EN, 5105M, 5105ML, 5225, 5310, 5325, 5325N, 5425, 5425N, 5525, 5525N, 5625, 5725, 5725N

6 Series: 6100D, 6110D, 6115D, 6120, 6120L, 6125D, 6130D, 6140D, 6140J, 6155J

6/7 Series: 6215, 6220, 6220L, 6230, 6320, 6320L, 6330, 6415, 6420, 6420L, 6430, 6520L, 6615, 6715, 7130, 7220, 7230, 7320, 7330, 7420, 7520

Replaces OEM Part Numbers:

AL152328

RE269110

AL15232

Note: Night-time photos are provided as a general guide. Light performance may vary based on installation height and camera conditions.

A simple and effective lighting upgrade for your John Deere
More light. Better spread. Built tough for Aussie conditions.
Upgrade your machine’s lighting today with premium CREE performance.
