JD R Series 1 FWA LED Light Upgrade Code; ledJD-RFWA1

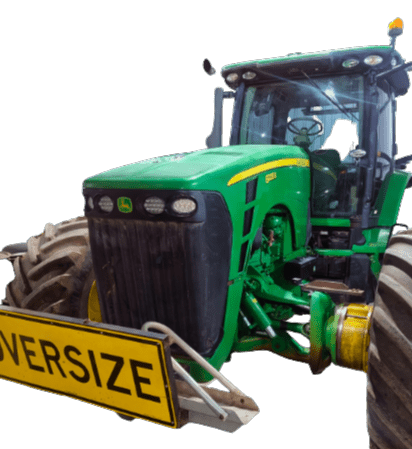

John Deere R Series 1 FWA Tractor Upgrade Kit (2010–2014)
Upgrade your John Deere with this premium LED Light Upgrade including 18 high-performing LED lights delivering 748 Watts and a stunning 59,400 Lumens.

Kit Includes:

• Grill Center Front Light:
  • Model: LEDGLOEL-EST-E45-D1R/S and Ballast, utilize the existing Glass Lens and reflector
  • Note: These LED globes draw power through a ballast

• Side Front Grille Lights:
  • Replace four factory halogen lights

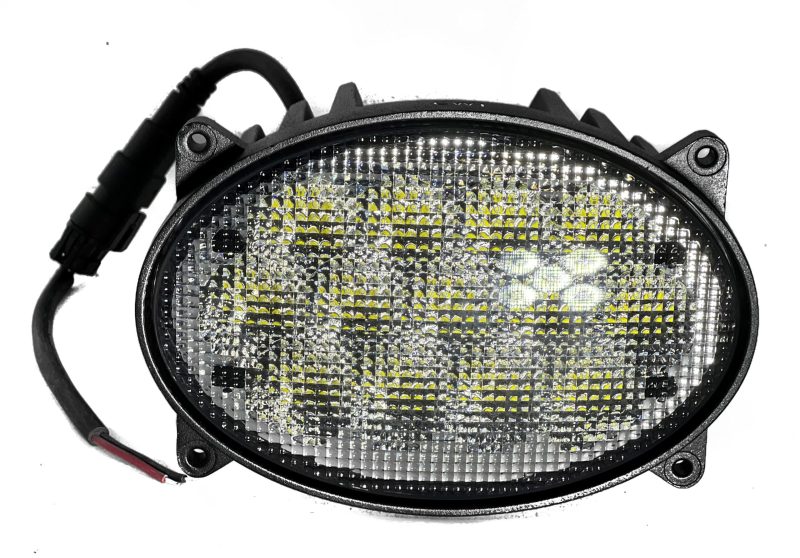

  • 2 x LED13X5-0652 (one per side), 65W, 5.4Amp draw, 5,000 lumens each
  • 2 x LED13X3-0391 (one per side), 39W, 2.9Amp draw, 3,120 lumens each

• Around Cab Lighting:
  • Replace six factory halogen lights
  • 6 x LED9X5-0456 (insert lights positioned around the top of the cab), 45W, 3.8Amp draw, 3,600 lumens each

• Cab & Mudguard Lights:
  • Replace six factory halogen lights

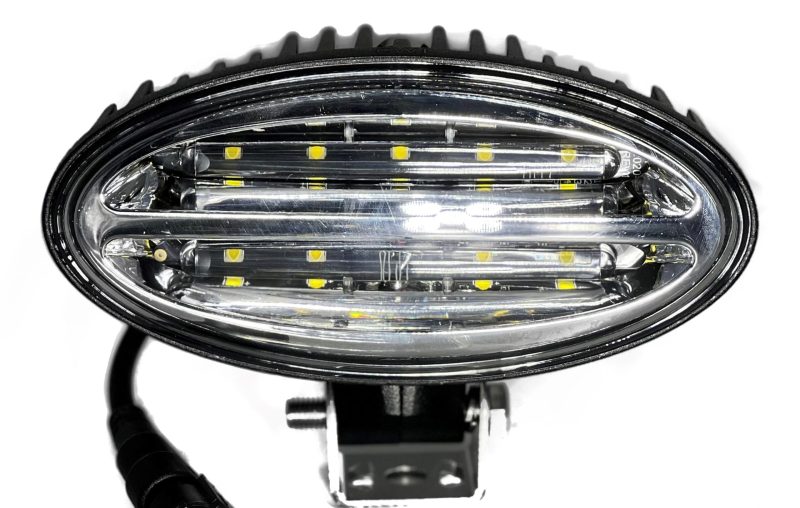

  • 6 x LED9X5-0455 arranged as follows:
    • 2 x Top of Cab Front
    • 2 x Each Side Front of Cab
    • 2 x Rear Mudguard (one per side)
  • Each light: 45W, 3.8Amp draw, 3,600 lumens

Compatibility Note:
Some lower horsepower models may not feature the HID globe in the middle of the grille or the extra LED9X5-0455 lights on each side of the windscreen. Please call our office or email us at sales@cwimports.com.au with photos of your tractor for clarification.
