PRO700 Plus and 1200 Screen inputs
1200 screen rear
1200 Screen, Case and New Holland

4 Mini BNC adapters to 7 Pin Plug Case and NH PRO700 Plus and1200 Screen, code; cwi7PQ1-BNC, Please Check Camera Compatibility

Code: cwi7PQ1-BNC, Please Check Camera Compatibility

$379.50

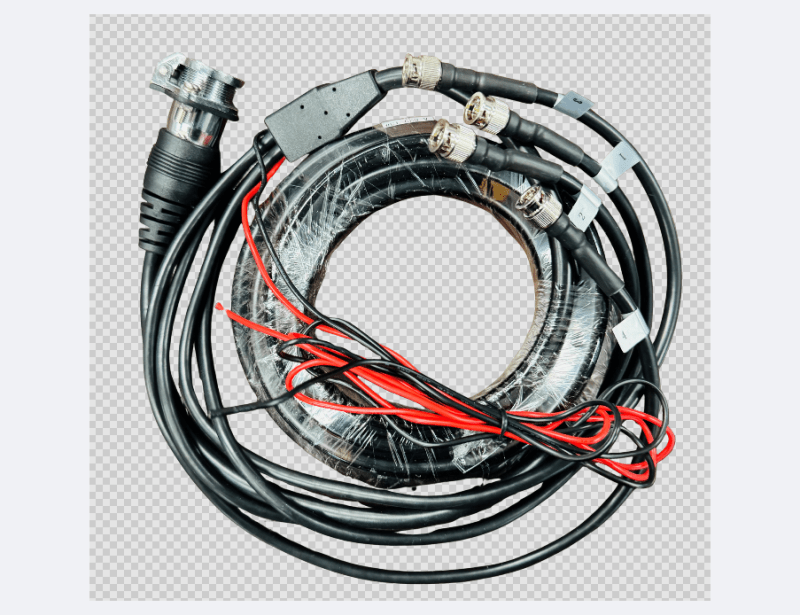

Mini BNC Camera Adapter Harness – to suit the second PRO700 Plus and intelli-view 1200 Screens in later release Case & New Holland Cabs

This new harness has a total length of 8 metre. From the FOUR MINI BNC plugs there is 0.5mt metre of cable to a junction, which also has the power input wires, it then has 7.5 metre of cable to a Seven pin camera input plug at Drawbar.

This Mini-BNC plug suits the rear inputs on the 2nd factory fitted Case IH PRO 1200 screens and the intelli-view 1200 New Holland models.

Please be aware that there are 4 different sizes of Mini-BNC plugs available.

the below harnesses will match this 7 Pin Drawbar Plug.

cwi7Q2-10, a 10mt across bar extension harness

cwi7Q2-15, a 15mt across bar extension harness

cwi7Q2-20, a 20mt across bar extension harness

cwi7P-Q3-1, a 1mt front of machine harvest

cwi7PQ3-12, a 12mt air-seeder harness

cwi7PQ3-17, a 17mt air-seeder harness

cwi7PQ3-19, a 19mt air-seeder harness

Compatible with CWI Digital Cameras Only:

  • cwicamstd

  • cwicam92MIR

  • cwicam92LED

  • cwicam120MIR

  • cwicam150MIR

  • cwicam644-120

  • cwicambul

High Definition Cameras will not operate on these NEW 1200 Screens!
