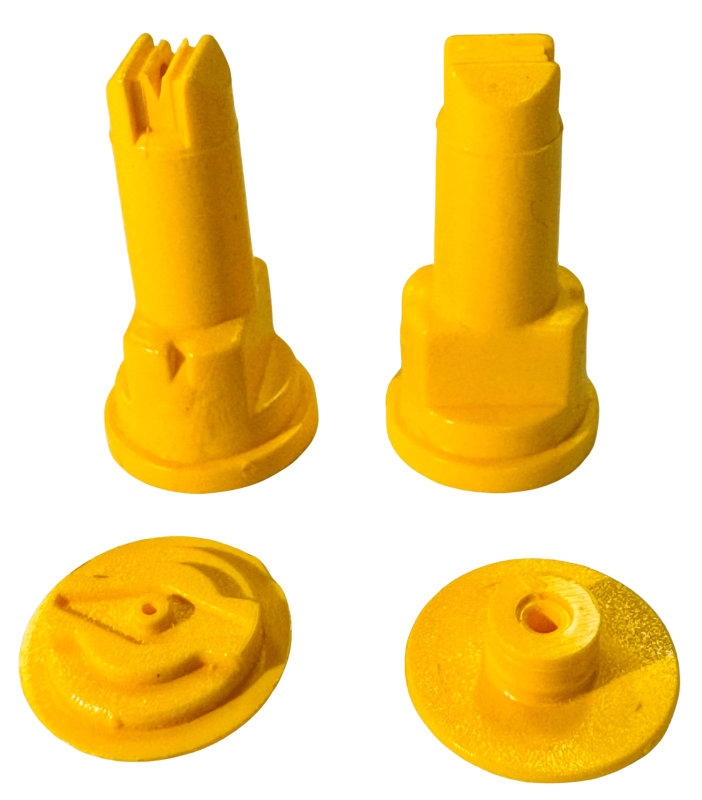

020 Pulzar ABJ Spray Nozzle Code; 10020Pul

020 Yellow Size

Research in Canada and the UK has shown that by blocking the air intake holes on the Billericay Air Bubble Jet results in a nozzle well suited to replacing worn nozzles on sprayers utilizing the Pulse Width Modulation System.
The droplet spectrum with these nozzles is very condense with very few large droplets and or fine droplets being produced resulting in a better quality spray pattern being produced to enhance chemical uptake and to reduce drift.
These nozzles fit in the standard T-Jet cap.

Nozzle  Pressure     Speed KPH @ 50cm
Bar L/Min  16  18  20  22  24  26  28  30
Yellow   2     0.61      49 44  40  36  33  31  28   26
0.02      2.5  0.73      55 49  44  40  37  34   32  29
Yellow  3     0.8        60 54  49  44  40  37  34   32
Yellow  3.5  0.87      65 58  52  48  44  40  38   35
Yellow  4     0.93      71  62  56  51  47   43  40  37
Yellow  4.5  0.98     74  66  59  54  50  46  42  39
Yellow  5      1.03     78  70  64  59  55  51   47   44
