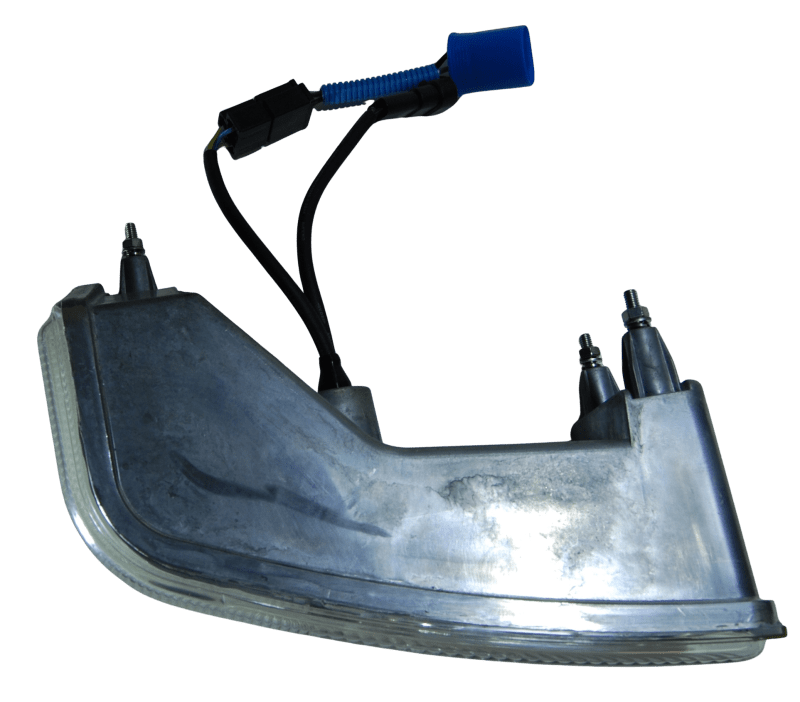

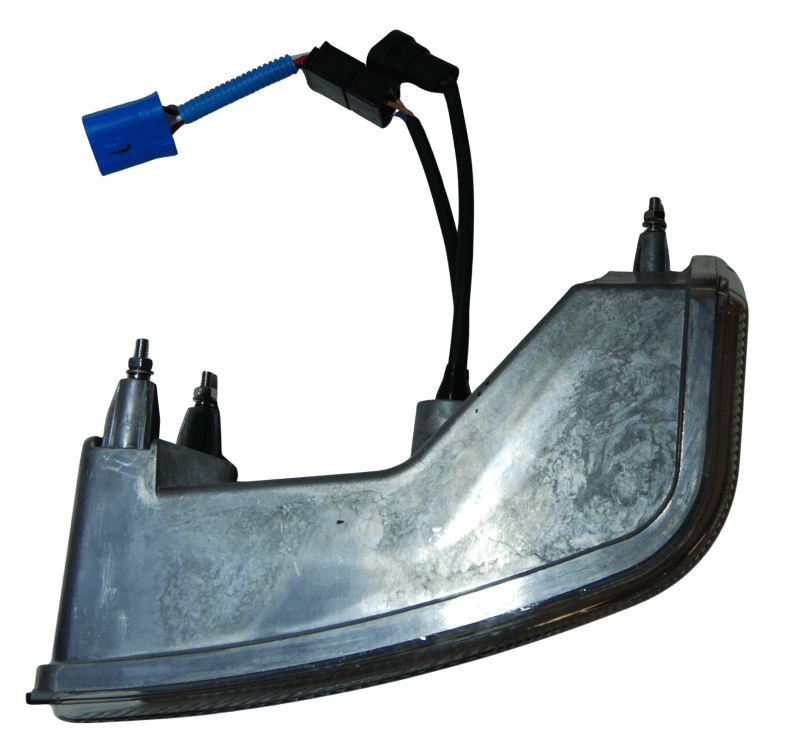

STX, Magnum and Patriot Replacement Side-lights, code; led24x5-1207

Replacement Side Light for original Case STX 2002-2010, Magnum Tractors 2002-2008 and Patriots. Fits easily into position on each side of the main Headlight.

This light is designed as a direct replacement light and is a High-Low unit with 60 watt as well as side lights with 60 watt as well, 120 Watt per piece. It features 24 pieces of 5 Watt CREE LED, producing 9000 Lumen at 5500-6000K. Manufactured with a die-cast aluminum housing + PC lens.

With the main headlight replaced with our led24x5-1201 and replacing the side lights, just transforms the lighting on these machines.

Case/IH CX: 100, 70, 80, 90 Case/IH Farmall: 105U, 85C, 85U, 95C, 95U
Case/IH JX: 100U, 1060C, 1070C, 1070U, 1075C, 1080U, 1085C, 1090U, 1095C, 1100U, 70U, 80U, 90U
Case/IH MX: 180, 200, 210, 220, 230, 240, 255, 270, 285
Case/IH MXM: 120, 130, 140, 155, 175, 190 Case/IH MXU: 100, 110, 115, 125, 130, 135
Case/IH STX: 275, 280, 325, 330, 375, 380, 425, 430, 440, 450, 480, 485, 500, 530
Case/IH Sprayer/Floater: 3020 Titan, 3040 Titan, 3520 Titan, 3540 Titan, 4020 Titan, 4030 Titan, 4040 Titan, 4520 Titan,
4530 Titan, 4540 Titan, 3320 Patriot, 4420 Patriot, SPX4260 Patriot, SPX4410 Patriot
Case/IH Steiger: 280, 330, 335, 380, 385, 430, 435, 480, 485, 530, 535 Case/IH Fertilizer: FLX4010, FLX4510
OEM Part Numbers: 232449A2 (Left), 232451A2 (Left), 365842A1 (Left), 87429389 (Left), 232448A2 (Right),
232450A2 (Right), 365841A1 (Right), 87429390 (Right)

Below comment just received by happy client.

“Highly recommend the lights you got me for Case IH Steiger.”

Regards S.L.

Being supplied exclusively to Central Wheatbelt Imports with-in Australia by our manufacturer.

Night time photos are only provided as an indication of light produced, height placement on machinery will vary light quality along with a photographers skill or lack there off!!.
