Case STX, Magnum and Patriot LED Headlight, code; led24x5-1201

LED Replacement Light – Case STX, Magnum & Patriot (2002–2010)

Transform your tractor’s night visibility with this high-output LED replacement light, code; led24x5-1201, designed to directly replace the front middle headlight on Case STX (2002–2010), Magnum (2002–2008), and Patriot sprayers.

Most machines from this era are fitted with outdated HID globes and ballasts—expensive, inefficient, and underperforming. This LED upgrade takes around 15 minutes to install and offers a massive improvement in usable light, without overloading your alternator.

Key Features:

24 x 5W CREE LEDs – Total 120W output

Light Output: 9,000 lumens

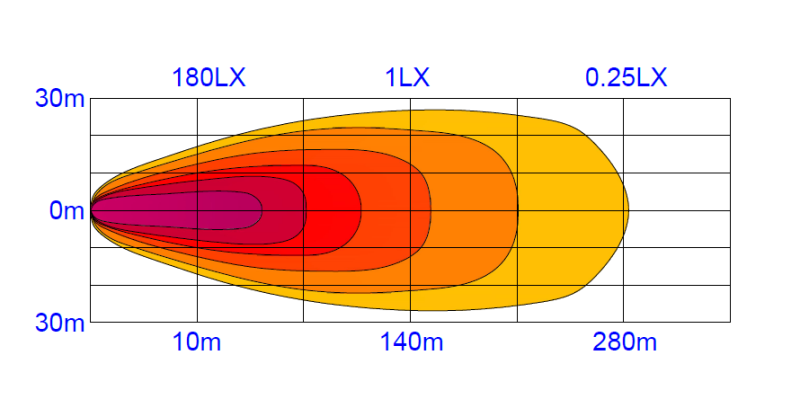

Beam Pattern: High beam only with wide flood beam

Colour Temperature: 5500K–6000K

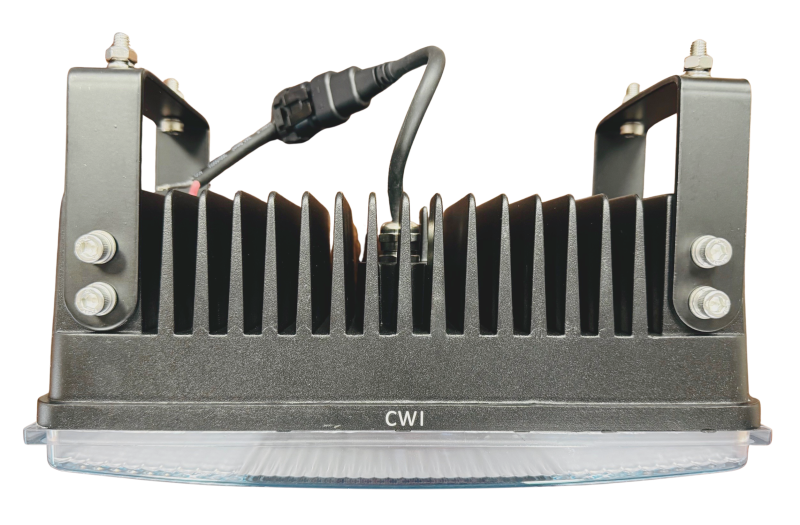

Housing: Heavy-duty die-cast aluminium with durable PC lens

Quick Fit: Direct replacement—no ballast required

Tree in reference photo is approx. 80 metres away. Users consistently report that these lights outperform expectations, often commenting that photos don’t do the output justice.

Why Choose This Light?

Simple plug-and-play installation
Superior light output compared to HID setups
Eliminates the need for additional lightbars
Reduces strain on your alternator

Compatible Models:

MX Series (Magnum):
180, 200, 210, 220, 230, 240, 255, 270, 285

STX Series:
275, 280, 325, 330, 375, 380, 425, 430, 440, 450, 480, 500, 530

Case IH Steiger:
280, 330, 335, 380, 385, 430, 435, 480, 485, 530, 535

Sprayers (Patriot):
3320, 4420, SPX4260, SPX4410

Floaters (Titan):
3020, 3520, 4020, 4520

OEM Part Numbers:
232454A2, 232455A2

Exclusively supplied to Central Wheatbelt Imports by our trusted manufacturing partner.

 Note: Night photos are for general guidance only. Light output may vary based on mounting height and photo conditions.

Need Fitment Advice?

If you’re unsure, email clear photos of the front and side of your machine to
sales@cwimports.com.au or Phone 08 9335 2700

Forget the hassle of wiring in poor-performing light bars that can cause electronic issues—this is a direct-fit solution.

Reliable performance, easy installation, and superior brightness

Upgrade your tractor’s lighting with high-output, energy-efficient LED technology — built to outperform and outlast factory options.
