JD 82/3/4/520 and similar LED Upgrade, code; ledJD8520

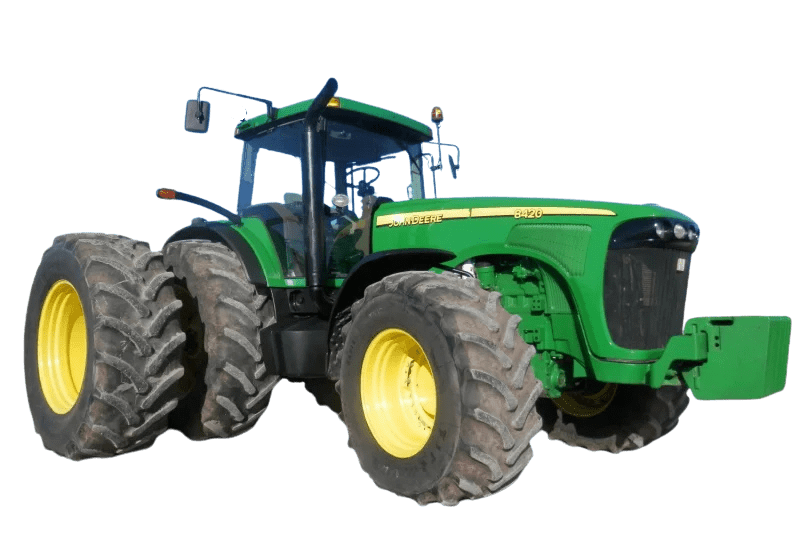

John Deere 8220/30/40/50 Series LED Light Upgrade

Upgrade your John Deere with this premium LED Light Upgrade including 10 high-performing LED lights delivering 598 Watts and 47160 Lumens

Kit Includes

• Side Front Grille Lights:
  • Replace four factory halogen lights
  • 2 x LED13X5-0652 (one per side), 65W, 5.4Amp draw, 5,000 lumens each
  • 2 x LED13X3-0391 (one per side), 39W, 2.9Amp draw, 3,120 lumens each

Each side front of Cab and Rear work lights

• Replace six factory halogen lights
• 6 x LED13X5FL 65 watts, 4.9 amp draw, 5,220 lumens.
  Installation Tip: If factory-fitted HID flood lights are present, remember to disconnect the power from the ballast.

Additional Options & Compatibility:

• For Newer Models:
  Some newer series machines feature additional work lights. These can be purchased separately as LED13X5FL units.

• For Higher HP Machines:
  Models with a larger bonnet may have five lights across the front—the middle light being a EL-EST-E4S-D1R/S Globe which will source the power through the existing 55-watt ballast. If your machine has the wider bonnet, the Middle bonnet light we can supply a 55 watt 10,000K LED Globe which does use the standard factory fit ballast and is a huge improvement over HID, code; ledgloEL-EST-E45-D1R/S, link https://cwimports.com.au/products/led-lights-and-accessories/led-globes/led-globe-d1r-s-single-code-ledgloel-est-e45-d1r-s/

Need Help?
If you’re uncertain about your requirements, simply send photos to sales@cwimports.com.au of your tractor’s lights for clarification.

As one of our first and highest-selling upgrade kits, this package has received excellent feedback from customers looking to improve the lighting on their John Deere tractors.
