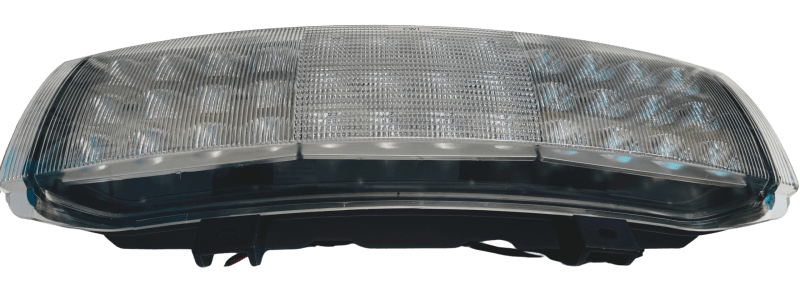

Case STX and Magnum LED Headlight, code; LED36X5-1801

Replacement LED Headlight – Case STX, Patriot & Magnum (2009–2018)

Upgrade your lighting the smart way with this high-performance LED headlight, specifically designed to replace the middle bank of lights on Case STX, Patriot, and Magnum tractors (2009–2018 models).

Forget the hassle of wiring in poor-performing light bars that can cause electronic issues—this is a direct-fit solution, built for performance, durability, and ease of installation.

Key Features:

13500 Lumens Output – Powered by 36 x 5W CREE XTE LEDs

Direct Replacement Fit – No modifications needed

Die-cast Aluminum Housing with PC Lens & Stainless Steel Screws

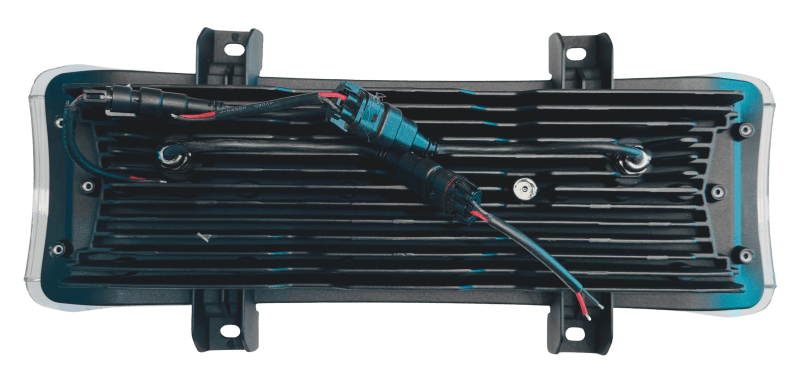

Three 9005 Connector Plugs for quick connection

 Reliable, Low-Interference Lighting – No external light bars required

Fitment Notes:

Two lights required on 50-inch chassis machines (typically 450HP and above)

Designed to replace the centre bank of lights on compatible machines

Compatible Models:

Magnum: 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380
MX: 215, 245, 275, 305
Puma: 165, 170, 180, 185, 195, 200, 210, 215, 220, 225, 230, 240
Quadtrac: 370, 400, 420, 450, 470, 500, 540, 550, 580, 600, 620

OEM Part Numbers:

87455676, 87455677, 87308895

Need Help Confirming Fitment?

Send a photo of the front and side of your machine to
sales@cwimports.com.au or
08 93352700 and our team will be happy to ass

Upgrade your tractor’s lighting with high-output, energy-efficient LED technology — built to outperform and outlast factory options.

Forget the hassle of wiring in poor-performing light bars that can cause electronic issues—this is a direct-fit solution, built for performance, durability, and ease of installation.
